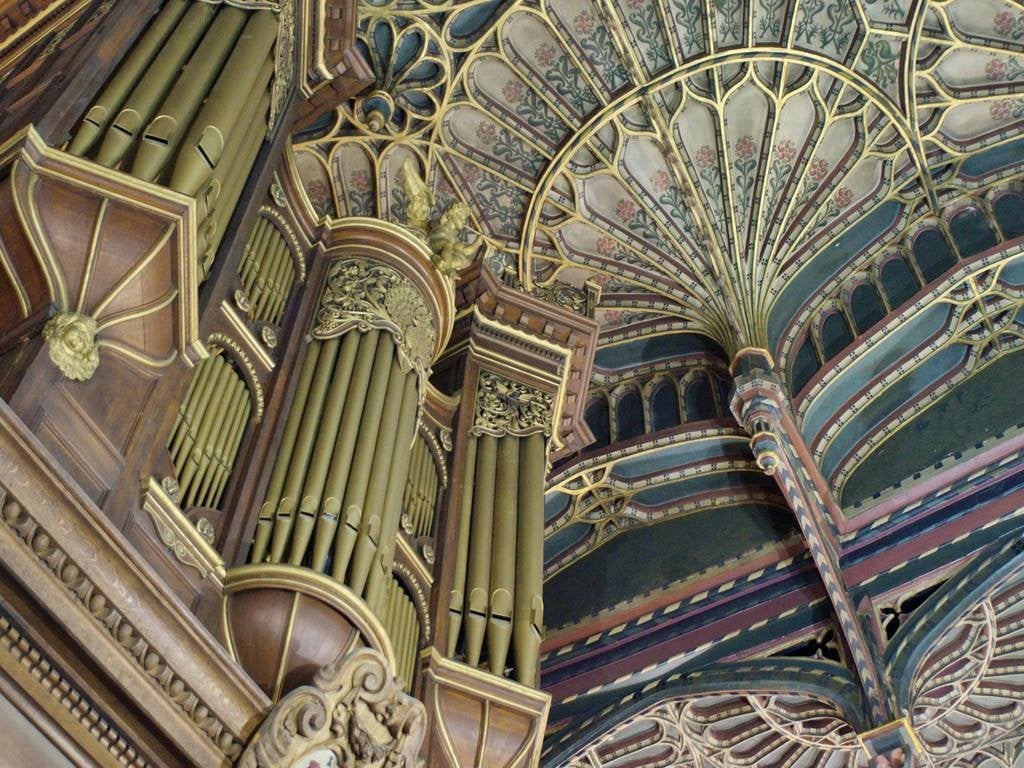

Organ2015The organ was originally built by Peter Collins in 1973 along classical lines and is housed within the splendid free-standing baroque-fantasy case constructed in 1892 by Thomas Jackson on the 17th century screen which separates the chapel from the antechapel.

In 2001/2002 the organ was rebuilt by Richard Bower who altered the internal layout, installed a new console, and provided a new action. The ‘open-foot' voicing was carefully regulated and three new stops were provided. The organ is naturally suited to eighteenth-century music but it is still possible to fill the Chapel with the sounds of Widor's sixth symphony!

Case: 1892      Sir Thomas Graham Jackson
Great above console in S. Tower, Swell in N. Tower, Pedal between

Organ specification:



Pedal

Key action Tr  Stop action El



1

Subbass

16





2

Gedackt

8





3

Spitzoctave

4





4

Fagot

16





5

Trumpet

8




Great





6

Principal

8





7

Rohrflute

8





8

Octave

4





9

Spitzflute

4





10

Octave

2





11

Mixture

IV





12

Trumpet

8

2001



13

Tremulant




Swell





14

Gamba

8

TC, 2001



15

Wood Gedackt

8





16

Principal

4





17

Rohrflute

4





18

Nazard

2 2/3

OrgB Rohr Nazard



19

Gemshorn

2





20

Tierce

1 3/5





21

Mixture

III-IV

2001



22

Oboe

8





23

Tremulant



Console

Console type  attached   Stop type  Drawstop   Pedalboard  straight concave

keys faced with synthetic ivory & ebony; console on south face of case;
flat jambs;

Couplers

Swell to Pedal

Swell to Great

Great to Pedal

Accessories

10 general pistons
4 pistons each to Swell and Great
2 levels of memory
